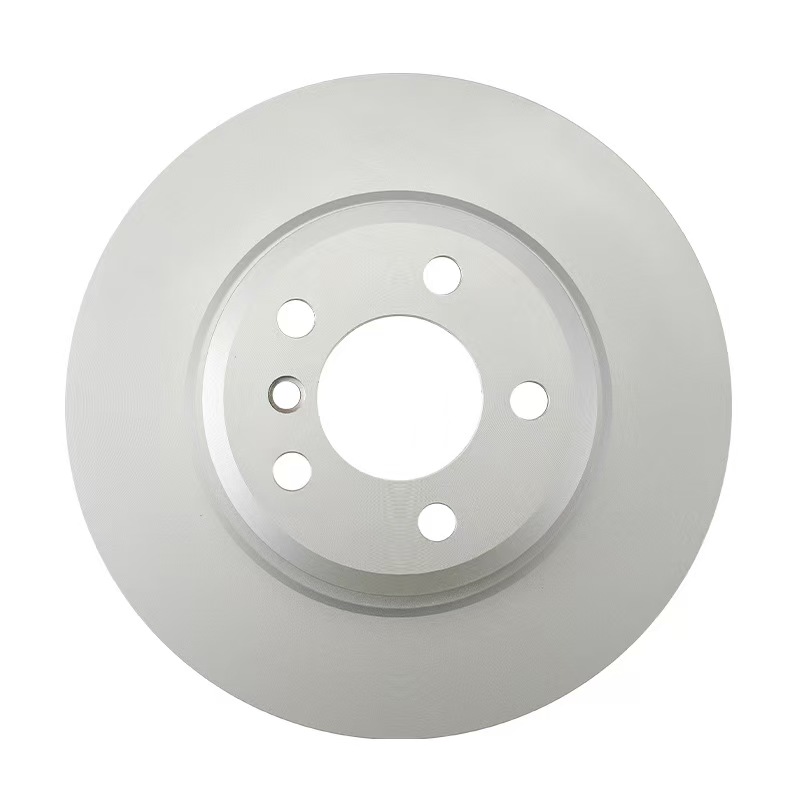

NISSAN BRAKE DISC

Grey Cast-Iron G3000 – cast, machined and balanced to Nissan OE data for factory fit, quiet operation and long service life.

Manufactured in an IATF-16949 plant that ships the same part number to Nissan assembly lines worldwide.

1. TRUE OE GEOMETRY

– CNC-turned outer Ø, thickness and bolt circle to Nissan drawing—installs without spacers, shims or re-machining.

– Hub pilot and ABS tone-ring slots held ± 0.01 mm—zero lateral run-out, no brake judder or dashboard ABS lights.

2. GREY CAST-IRON G3000 CHEMISTRY

– 3.3 % C, 2.0 % Si, 0.7 % Mn, ≤ 0.15 % P, ≤ 0.12 % S—identical melt used on Altima, Rogue, Frontier, Qashqai.

– Pearlite matrix, 200-230 HB: high wear resistance, excellent thermal conductivity and natural vibration damping.

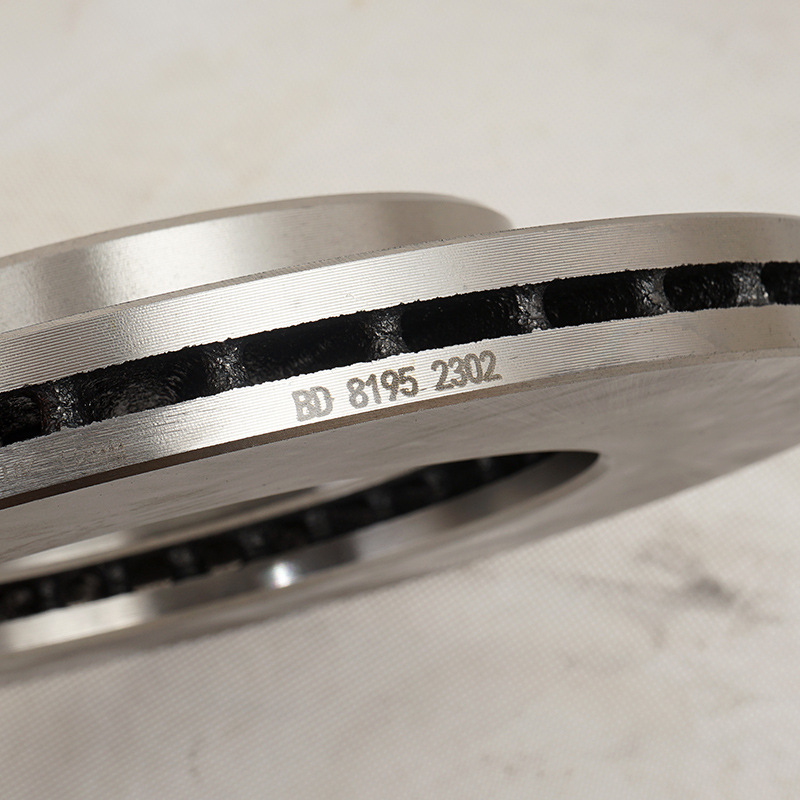

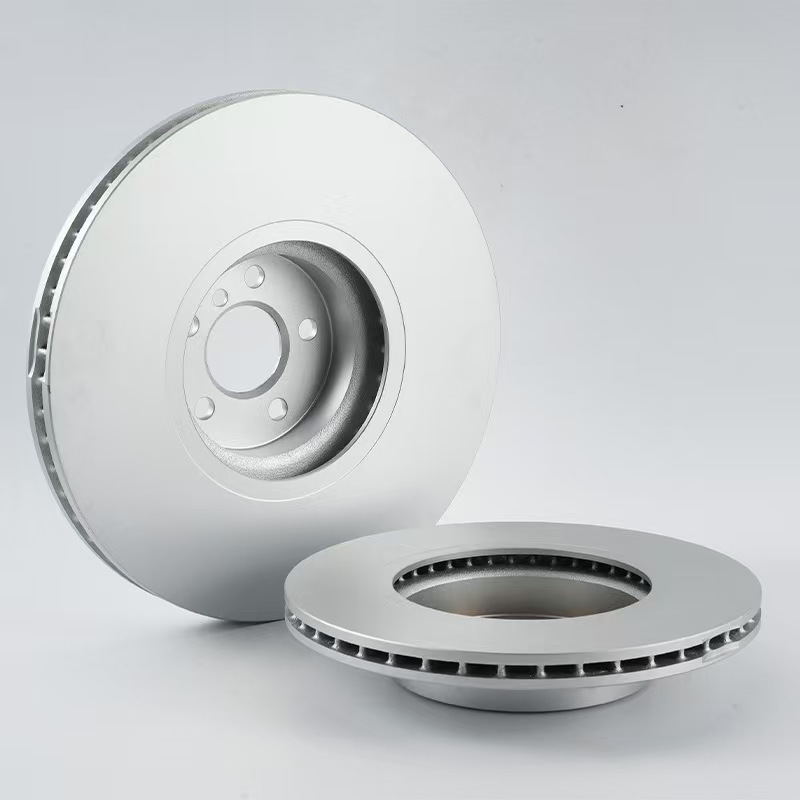

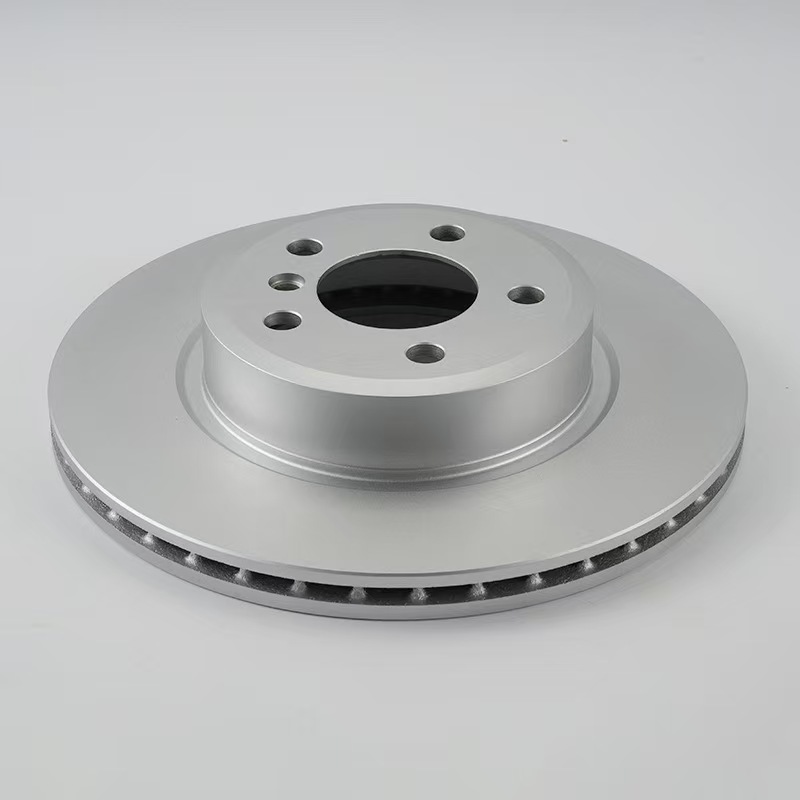

3. HIGH-CAPACITY VENTILATED CORE

– 44 directional vanes increase airflow 16 %, cutting peak temperature 65 °C during repeated 100-0 km/h stops.

– Single-piece casting—no welded seams to fail under heavy loads or mountain descents.

4. SURFACE FINISH & PRECISION BALANCE

– Non-directional swirl, Ra ≤ 1.6 µm—beds-in within 20 stops, no greenfade.

– Dynamic balanced ≤ 0.8 g—steering-wheel shake free at Nissan’s 120 km/h (75 mph) limit.

5. ANTI-CORROSION COATING

– Electro-zinc on hat, outer rim and vane mouths—96 h salt-spray per ASTM B117, no rusty hats behind alloy wheels.

– Friction faces uncoated for immediate use; protective oil film burns off on first brake application.

6. QUIET, LOW-DUST PROFILE

– Radial & lateral chamfers plus 0.30 mm under-cut slots eliminate pad-knock and squeal.

– Optimised for Nissan low-met and ceramic pads—low dust, no black rims.

7. TESTED TO NISSAN LIMITS

– 300-cycle AK-Master (100-30 km/h, 3.5 kW power) wear ≤ 0.35 mm—within Nissan 0.5 mm wear limit.

– Thermal shock: 500 °C → 20 °C water quench, 50 cycles—no surface cracks, distortion < 0.03 mm.

8. SERVICE LIFE & FITMENT

– 70 000–90 000 km normal street use; 35 000 km severe duty (taxi, courier, mountain routes).

– Direct replacement for selected Nissan cars, SUVs and pickups—see reverse for VIN/chassis chart.

– Replace in axle pairs and use Nissan-specified pads for optimum pedal feel.

INSTALLATION NOTE

Clean hub face with wire brush, apply thin anti-seize on contact shoulders only, torque wheel nuts to 108 N·m (M12) in star pattern.

Bed-in: 8 moderate stops 80 km/h → 30 km/h with 30 s cooling between each.

TYPICAL FRONT DISC SPEC (17″ wheel)

Outer Ø: 320 mm

Thickness new: 28 mm

Min. thickness: 26 mm

Centre bore: 66.1 mm

Stud pattern: 5×114.3 mm

Weight: 7.9 kg

Material: G3000 grey cast iron, heat-treated

Max run-out: 0.025 mm

Thickness variation: ≤ 0.010 mm

Restore the smooth, confident braking Nissan engineers designed—choose Nissan Genuine Technology brake discs.
