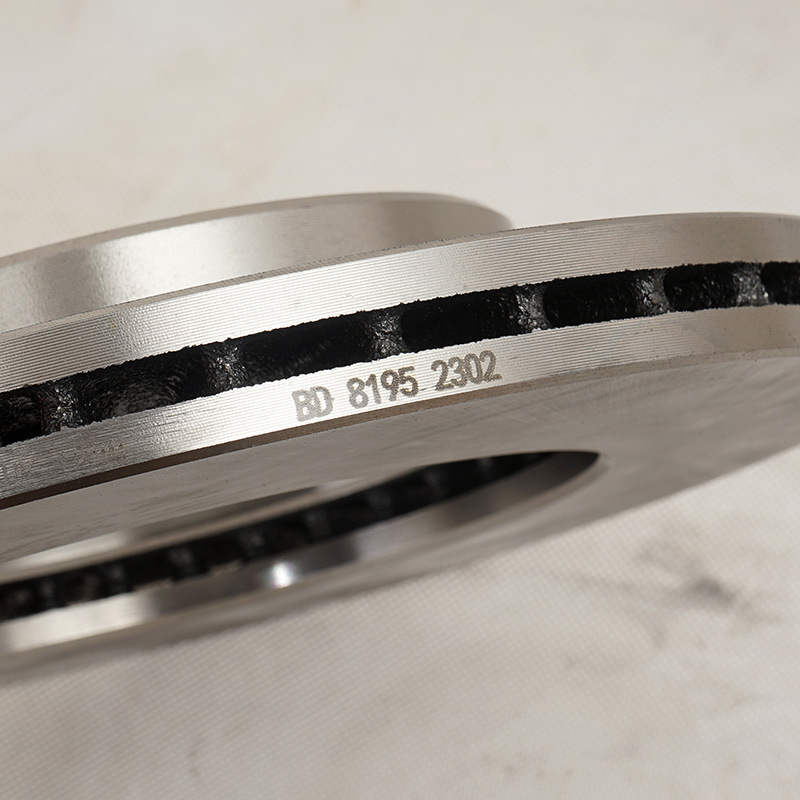

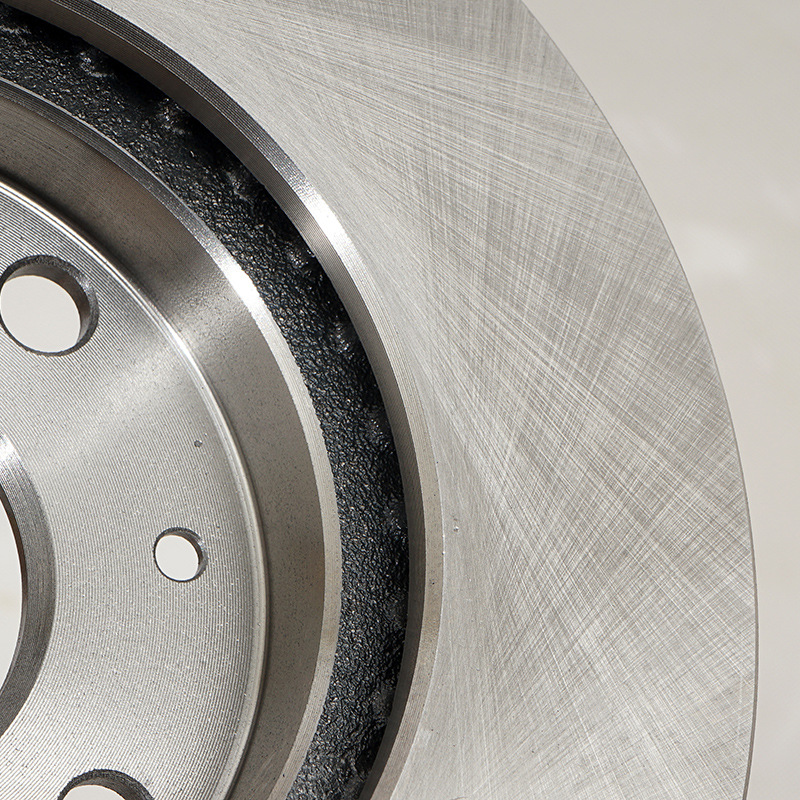

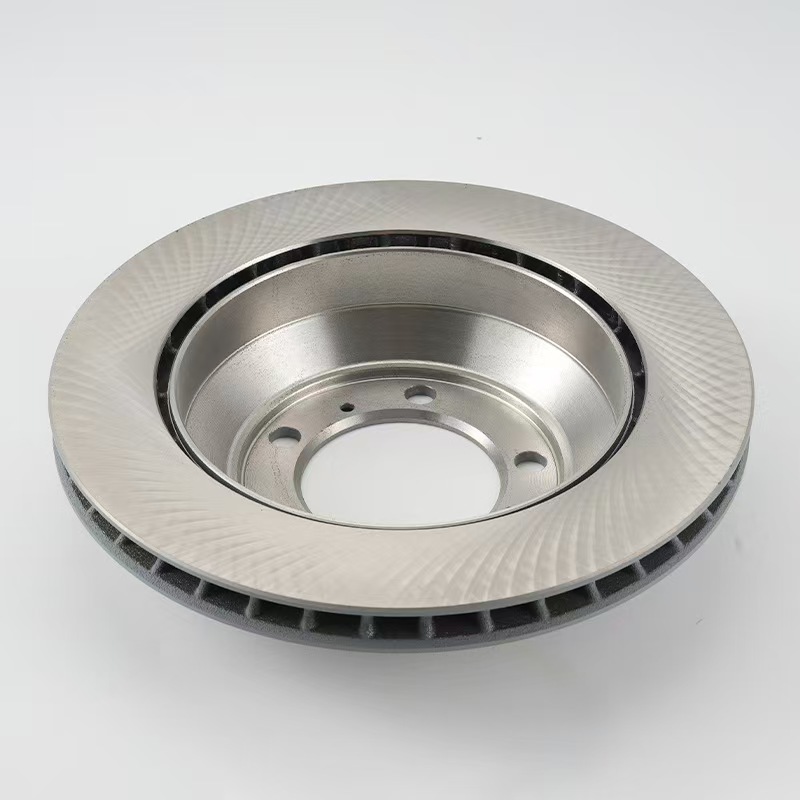

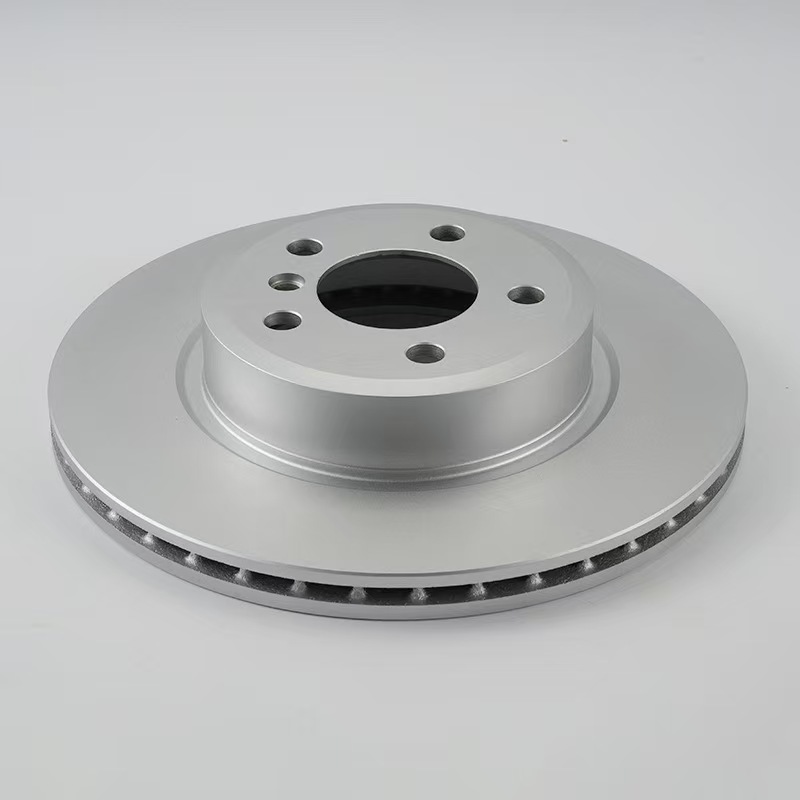

Ventilated Brake Disc
Auto Brake Systems Brake Disc 42431-42060 for FORD Focus Mondeo Fiesta Ecosport Transit Ranger Everest Explorer
$40.00
Ford Brake Disc (Rotor) – Product Information Sheet
(Export-ready template for independent website)
Product Name
High-Performance Brake Disc Rotor for Ford Passenger Cars, SUVs & Trucks
Popular OEM Part Numbers (examples)
DG9Z-1125-A (Fusion / MKZ Front)
BB5Z-1125-C (F-150 Front, 13.8 in)
DG1Z-1125-A (Edge / Explorer Rear)
7T4Z-1125-A (Focus Front)
AL8Z-1125-A (Escape Rear)
Material & Grade
G3000 / HT250 cast iron (OE grade)
Optional: High-carbon or stainless steel 2Cr13 for severe-duty applications
Surface Finish Options
Silver or black e-coat (≥ 96 h salt-spray resistance)
Slot & drilled, dimpled, or plain as per order
Key Technical Data (typical ranges)
Dimension | Range |
|---|---|
Outer Ø | 278 mm – 380 mm |
Thickness (new) | 12 mm – 36 mm |
Min. thickness | 10.5 mm – 32 mm |
Bolt holes | 5 × 108 mm to 6 × 135 mm |
Hub bore | 63.5 mm – 87.0 mm |
Weight | 4.0 kg – 10.5 kg / pc |
Vehicle Coverage (partial)
Cars: Focus (’00-’23), Fiesta, Fusion, Mondeo, Mustang (incl. GT & Mach-1), Taurus
SUVs/CUVs: Escape, Edge, Explorer, Expedition, EcoSport, Bronco Sport, Maverick
Trucks/Vans: F-150, Ranger (T6), Transit Connect, Transit Custom
(Full VIN/YM look-up table available on request)
Product Features
CNC-turned friction surfaces (run-out ≤ 0.03 mm)
100 % dynamic balance ≤ 0.8 g·cm
Narrow tolerance cooling-vane geometry → 12 % faster heat dissipation vs. OE
Direct OE replacement – no spacers or extra hardware
TS-16949 & ISO 9001 production lines
Noise-damping chamfers and shims where applicable
Testing & Certification
SAE J431 material compliance
AMS 90-10 inertia dyno test ≥ 1 000 consecutive stops @ 650 °C
AK-master noise evaluation ≤ 65 dB(A)
Salt-spray ASTM B117 ≥ 96 h (e-coat)
Packaging & Shipping
Single pack: shrink-wrap + bubble sleeve + brown export carton (K = K)
Master carton: 4 / 6 / 8 pcs per carton, palletised 48–64 pcs (1 × 1.2 m Euro-pallet)
Label: Ford OE No., Min. thick., batch code, barcode, CE mark
Port: Shanghai / Ningbo / Shenzhen
Lead time: 20 – 35 days after deposit (≤ 1 000 pcs)
MOQ: 50 pcs per part number (mixed sizes accepted)
Incoterms: FOB, CIF, CFR, DAP, or EXW factory
Warranty
12 months unlimited mileage or 30 000 km, whichever occurs first
OEM / ODM Services
Laser-etched or printed logo
Custom PMS colour box / sleeve / blister
Private-label catalogue & data-sheet creation
Samples & Documents
Prototypes ready in 7 – 10 days (existing pattern)
Test reports (material, balance, dyno) supplied free of charge
PPAP L3 available for qualified distributors
